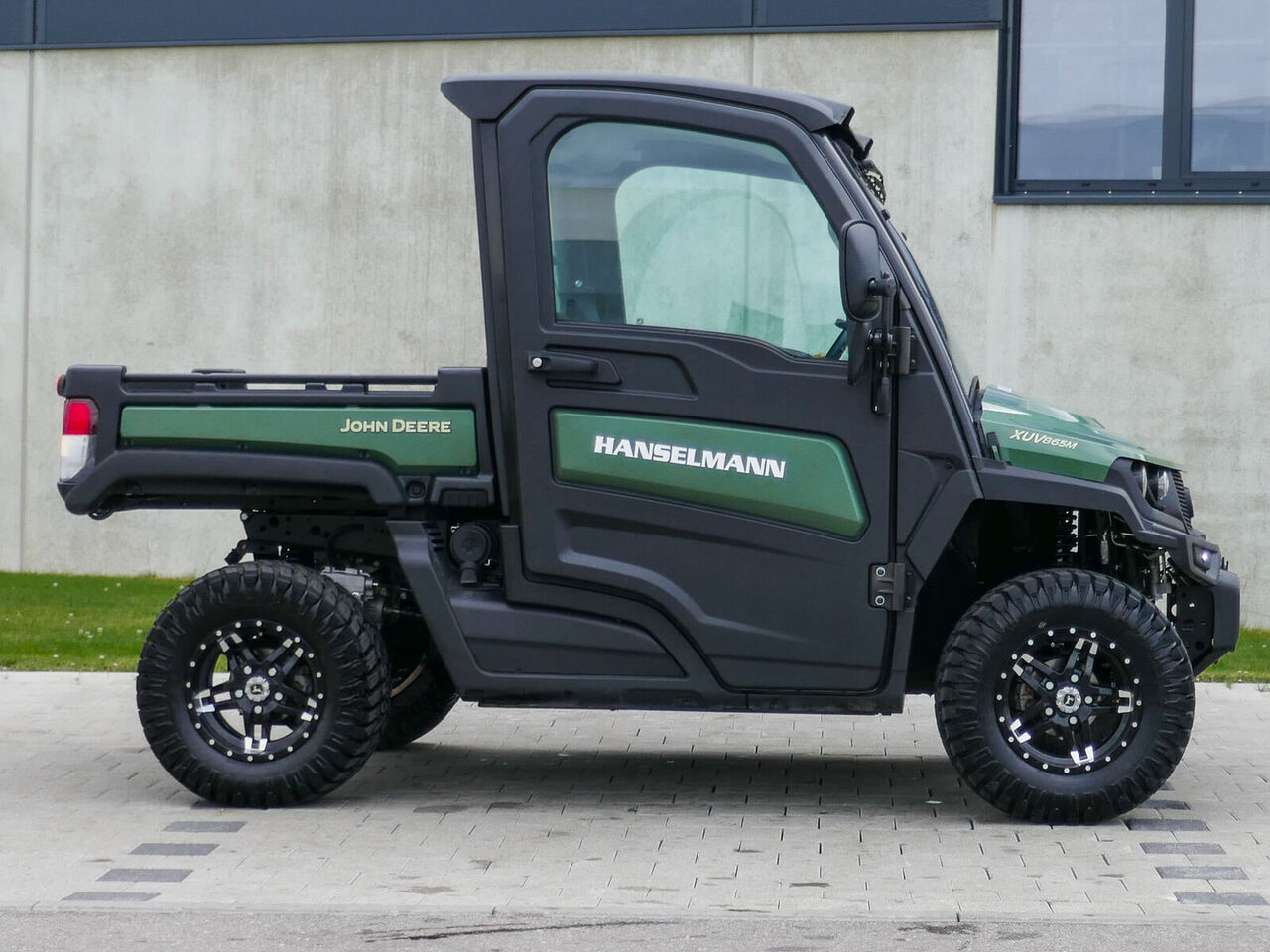

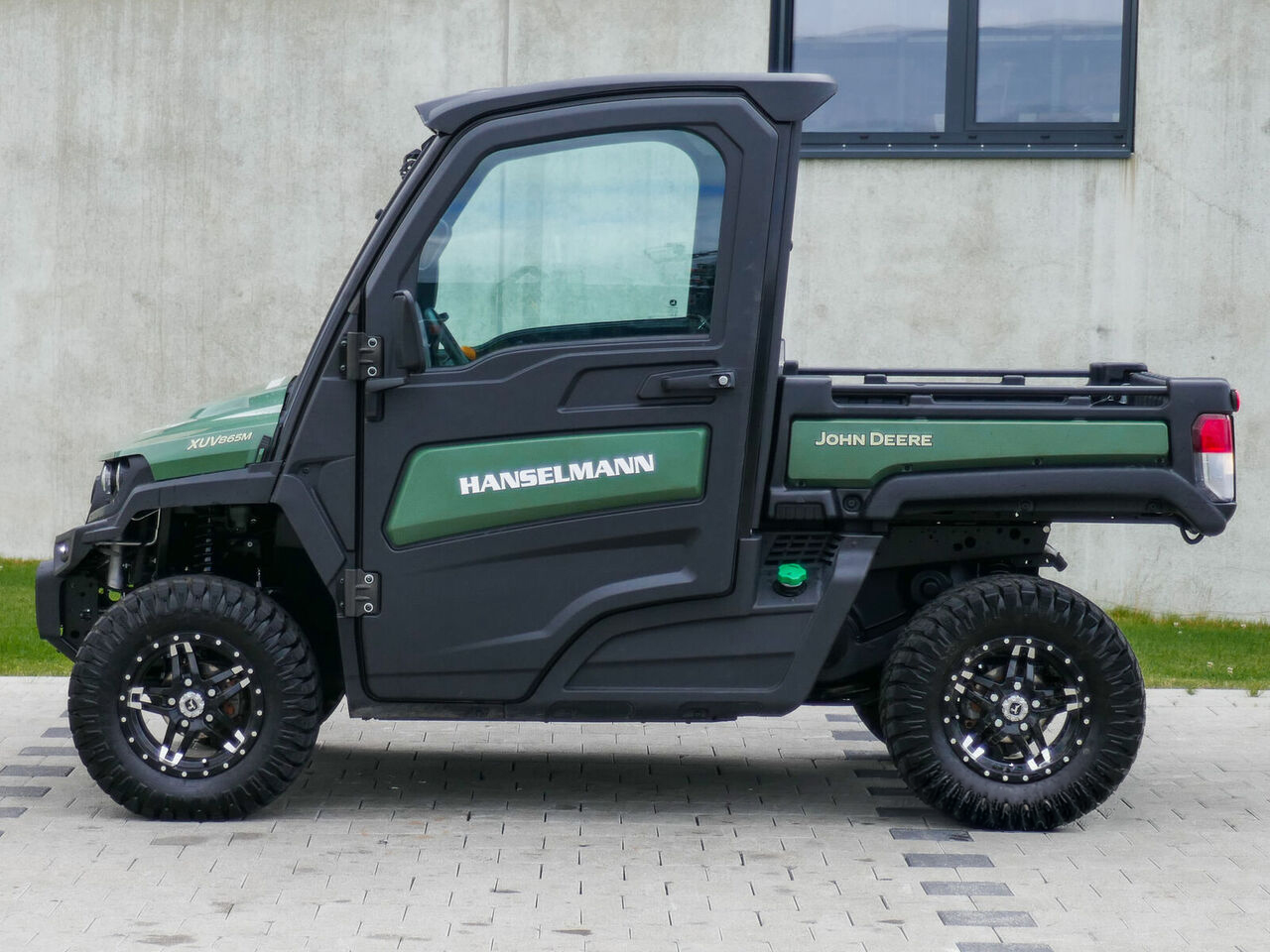

John Deere Gator XUV865M – Diesel UTV

Product: John Deere
Model: Gator XUV865M
Category: Tugger / Utility Vehicle
Drive Type: Diesel, 4WD
Road Approval: STVO compliant (road legal)

Dimensions

• Overall Height: 2000 mm
• Overall Width: 1800 mm
• Cab Height: 2000 mm
• Ground Clearance (Center): 270 mm

Platform / Cargo Bed Dimensions

• Length: 1120 mm
• Width: 1300 mm
• Height: 310 mm

Engine & Performance

• Water-cooled Yanmar 3TNV70 diesel engine
• 3-cylinder, 4-stroke engine
• EU Stage V emission compliant
• Top speed: 51 km/h
• Payload capacity: up to 454 kg
• Towing capacity: 680 kg

Chassis & Drivetrain

• Selectable 4-wheel drive (4WD)
• Independent suspension system
• Dual A-arm front and rear suspension
• Electronically selectable front differential lock via dashboard switch
• Active Hill Descent system for safe and intuitive downhill control
• Hydraulic braking system
• Smooth gear shifting with integrated park position in transmission
• Electro-hydraulic tipping cargo bed

Cab & Equipment

• Cab configuration
• Three-point safety belts
• Exterior mirrors
• Extremely durable high-pressure formed steel frame
• Full-size cargo platform
• Foldable rear bench seat
• Storage compartment
• Digital dashboard with gear indicator, tachometer, speed display, and fuel gauge

Wheels & Tires

• Front Tires: 27x9.00R14
• Rear Tires: 27x9.00R14
• Low-pressure turf-friendly tires
• Tire Type: Pneumatic (air-filled)

A powerful and versatile diesel utility vehicle engineered for dependable transport and heavy-duty use across all terrain conditions, suitable for agricultural, municipal, and industrial applications.
