More details

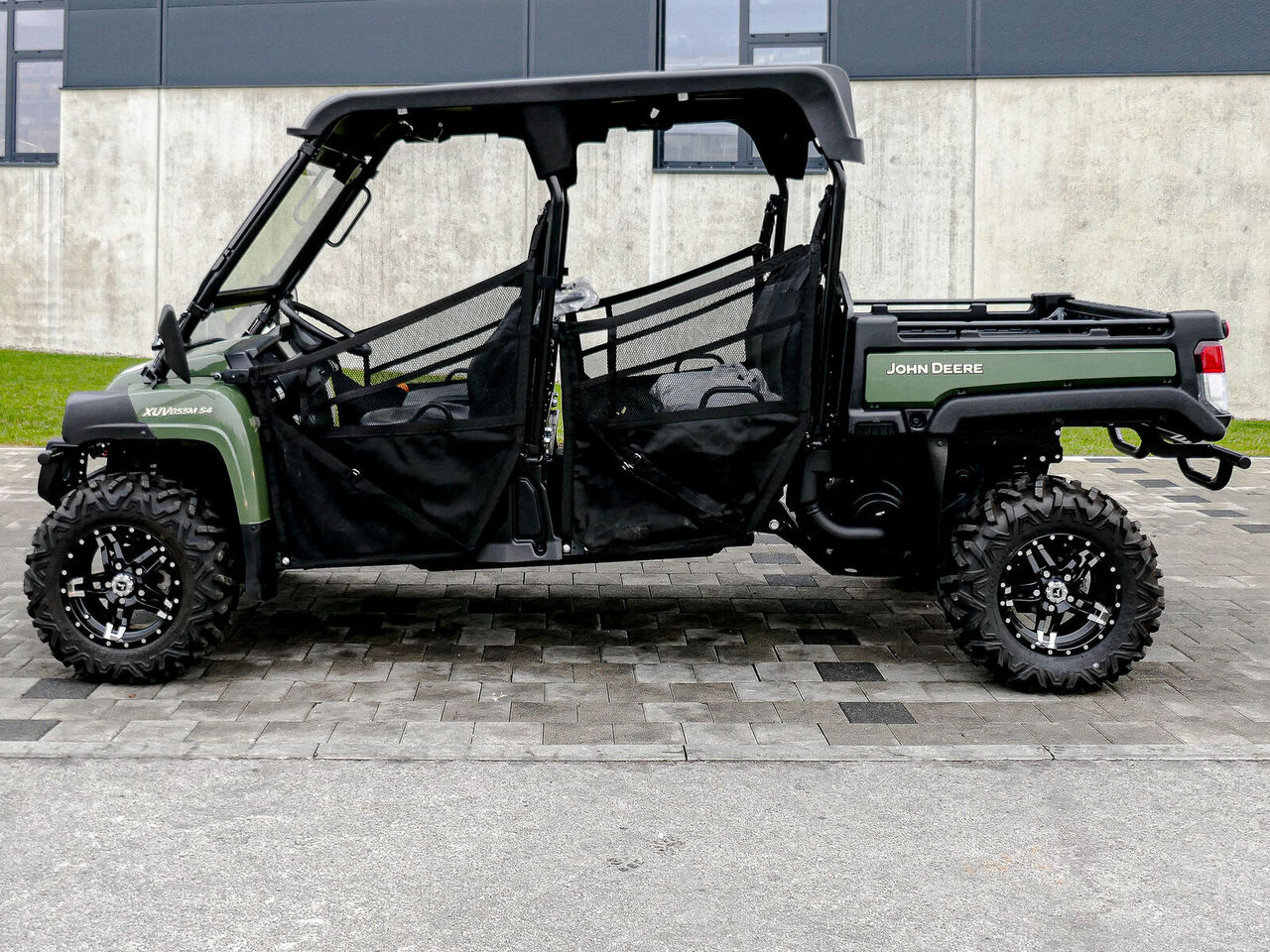

Product: John Deere
Model: Gator XUV855M S4
Category: Tugger / Utility Vehicle
Drive Type: Diesel, 4WD
Road Approval: STVO compliant (road legal)

Dimensions

• Overall Height: 1970 mm
• Overall Width: 1550 mm
• Cab Height: 1970 mm
• Ground Clearance (Center): 270 mm

Cargo Bed Dimensions

• Length: 1130 mm
• Width: 1300 mm
• Height: 310 mm

Engine & Performance

• Water-cooled Yanmar 3TNV70 diesel engine
• 3-cylinder, 4-stroke engine
• EU Stage V emission compliant
• Top speed: 51 km/h
• Towing capacity: 680 kg
• Payload capacity: up to 454 kg

Chassis & Drivetrain

• Selectable 4-wheel drive
• Independent suspension (Dual A-arm front and rear)
• Electronically selectable front differential lock
• Active Hill Descent system for improved downhill control
• Hydraulic braking system
• Smooth gear shifting with integrated park position in transmission
• Electro-hydraulic cargo bed lift

Wheels & Tires

• Front Tires: 27x9.00R14
• Rear Tires: 27x11.00R14
• Low-pressure turf-friendly tires
• Tire Type: Pneumatic

Cab & Equipment

• Half cab configuration
• Three-point safety belts
• Exterior mirrors
• Extremely durable high-pressure formed steel frame
• Full-size cargo bed
• Foldable rear bench seat (S4 configuration)
• Storage compartment
• Digital dashboard with gear indicator, speedometer, tachometer, and fuel gauge

A robust and versatile diesel utility vehicle engineered for reliable transport and work performance across all ground conditions, ideal for agricultural, municipal, and industrial applications.
